.Su-24 '68'

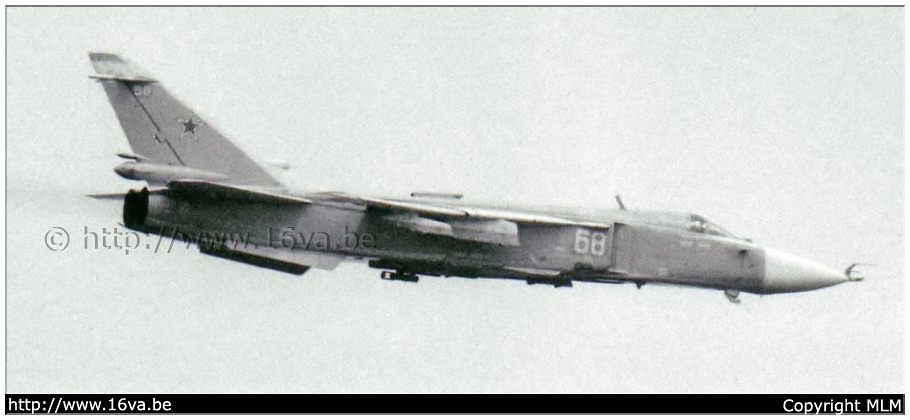

Page précédente (p)Page précédente (p) A 497.BAP Su-24 "Fencer-C" of the 24-27 series armed with a FAB-50 bomb. One can see under the nose the fairing of the Chaïka daylight optical sight. The antennas of the Filin-N system were located underneath that fairing. That was a radar detection and classification system, that was necessary to fire Kh-28 ARM missiles. It equipped the early Su-24 versions. Individual machines in a unit had different equipment to cover various radar bands. More antennas of the system were situated at the tip of the nose radome.
